This vignette shows you how to plot lineplots from eatRep data. The workflow is optimized for Bildungstrend-graphs, but can be expanded for plotting other eatRep data as well.

Lineplot for one group

Let’s take example data from the trend_gender example dataset. The first step in the workflow always is the data preparation. This is needed to bring the eatRep data into the correct format for plotting.

dat_lineplot_1 <- prep_lineplot(
  trend_gender[[1]],
  subgroup_var = "Kgender" ## Leave this argument if you have only one subgroup
)

It might be necessary to do some slight manual data preparation:

## Don't do that if you only have one group in your data, or want to plot all groups
dat_lineplot_1 <- subset(dat_lineplot_1, subgroup_var == "total")

## For correctly displaying the state names:
dat_lineplot_1$state_var <- process_bundesland(dat_lineplot_1$state_var)

dat_lineplot_1$subgroup_var <- as.factor(dat_lineplot_1$subgroup_var)

And then we can already plot:

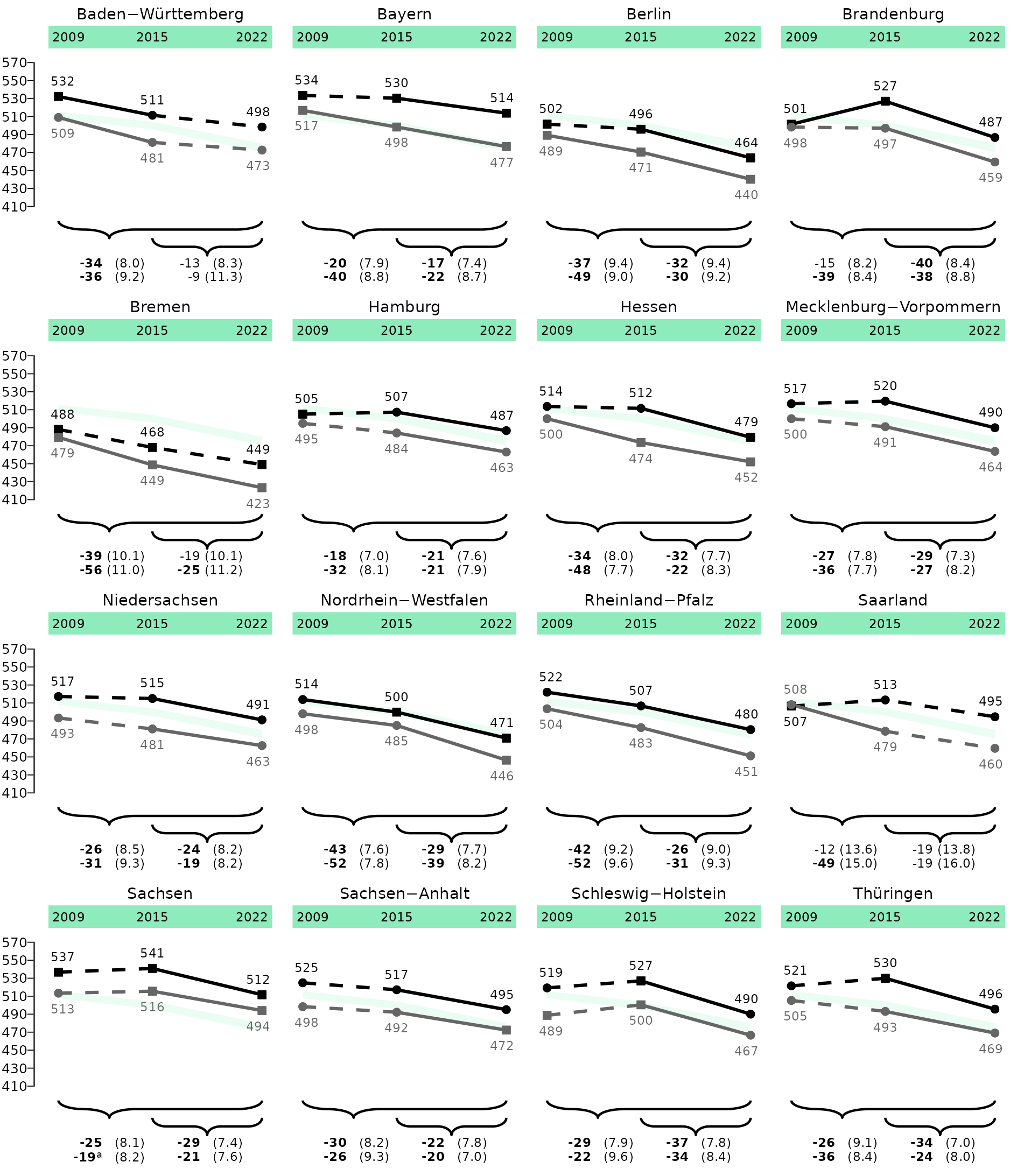

lineplot_1 <- plot_lineplot(dat_lineplot_1,
  years_lines = list(c(2009, 2015), c(2015, 2022)),
  years_braces = list(c(2009, 2015), c(2015, 2022)),
  background_facet = "Deutschland",
  plot_settings = plotsettings_lineplot(
    axis_y_lims = c(420, 540),
    default_list = lineplot_4x4
  )
)
save_plot(lineplot_1, filename = "C:/Users/hafiznij/Downloads/lineplot_1_group.pdf", width = 160, height = 185)

Lineplot for two groups

dat_lineplot_2 <- prep_lineplot(
  trend_gender[[1]],
  subgroup_var = "Kgender"
)

dat_lineplot_2$state_var <- process_bundesland(dat_lineplot_2$state_var)


## We can set the order of the brace labels by setting the factor levels of the subgroup_var:
dat_lineplot_2$subgroup_var <- factor(dat_lineplot_2$subgroup_var, levels = c("weiblich", "maennlich", "total"), ordered = TRUE)

lineplot_2 <- plot_lineplot(
  dat_lineplot_2,
  years_lines = list(c(2009, 2015), c(2015, 2022)),
  years_braces = list(c(2009, 2015), c(2015, 2022)),
  background_facet = "Deutschland",
  background_subgroup = "total",
  plot_settings = plotsettings_lineplot(
    subgroup_colours = c(weiblich = "black", maennlich = cmyk(0, 0, 0, 60)), ## Here we determine the colours of the subgroups
    axis_y_lims = c(410, 560),
    default_list = lineplot_4x4
  )
)
save_plot(lineplot_2, filename = "C:/Users/hafiznij/Downloads/lineplot_2_groups.pdf", width = 160, height = 185)
lineplot_2

Lineplot for whole Germany 3x2

trend_ger <- do.call(rbind, lapply(trend_gender, prep_lineplot, subgroup_var = "Kgender"))
trend_ger <- subset(trend_ger, state_var == "total")
trend_ger$subgroup_var <- factor(trend_ger$subgroup_var, levels = c("weiblich", "maennlich", "total"), ordered = TRUE)
trend_ger$kb <- gsub("hoeren", "Hören", trend_ger$kb)
trend_ger$kb <- gsub("lesen", "Lesen", trend_ger$kb)

trend_ger_2 <- trend_ger
trend_ger_3 <- trend_ger

trend_ger_2$kb <- gsub("Lesen", "Englisch: Reading", trend_ger_2$kb)
trend_ger_2$kb <- gsub("Hören", "Englisch: Listening", trend_ger_2$kb)


trend_ger_3$kb <- gsub("Lesen", "Biologie: Fachwissen", trend_ger_3$kb)
trend_ger_3$kb <- gsub("Hören", "Biologie: Erkenntnisgewinnung", trend_ger_3$kb)


trend_total <- rbind(trend_ger, trend_ger_2, trend_ger_3)
lineplot_germany <- plot_lineplot(
  trend_total,
  point_sig = NULL,
  years_lines = list(c(2009, 2015), c(2015, 2022)),
  years_braces = list(c(2009, 2015), c(2015, 2022)),
  facet_var = "kb",
  background_subgroup = "total",
  plot_settings = plotsettings_lineplot(
    subgroup_colours = c(weiblich = "black", maennlich = cmyk(0, 0, 0, 60)), ## Here we determine the colours of the subgroups
    brace_label_nudge_x = 0.22,
    n_cols = 2,
    axis_y_lims = c(430, 550),
    default_list = lineplot_4x4
  )
)
save_plot(lineplot_germany, filename = "C:/Users/hafiznij/Downloads/lineplot_2_groups_germany_3x2.pdf", height = 185, width = 108)
lineplot_germany

Lineplot for whole Germany 2x3 with split plot

lineplot_germany_2 <- plot_lineplot(
  trend_total,
  point_sig = NULL,
  years_lines = list(c(2009, 2015), c(2015, 2022)),
  years_braces = list(c(2009, 2015), c(2015, 2022)),
  facet_var = "kb",
  background_subgroup = "total",
  plot_settings = plotsettings_lineplot(
    subgroup_colours = c(weiblich = "black", maennlich = cmyk(0, 0, 0, 60)), ## Here we determine the colours of the subgroups
    brace_label_nudge_x = 0.23,
    n_cols = 3,
    axis_y_lims = c(430, 550),
    default_list = lineplot_4x4
  )
)
save_plot(lineplot_germany_2, filename = "C:/Users/hafiznij/Downloads/lineplot_2_groups_germany2x3.pdf", height = 185 * 2 / 3, width = 160)
lineplot_germany_2

Lineplot with missing values

dat_lineplot_2 <- prep_lineplot(
  trend_gender[[1]],
  subgroup_var = "Kgender"
)

dat_lineplot_2$est_mean_comp_none <- ifelse(dat_lineplot_2$state_var == "Berlin" & dat_lineplot_2$year == 2015, NA, dat_lineplot_2$est_mean_comp_none)
dat_lineplot_2$est_mean_comp_none <- ifelse(dat_lineplot_2$state_var == "Brandenburg" & dat_lineplot_2$year == 2009 & dat_lineplot_2$subgroup_var == "weiblich", NA, dat_lineplot_2$est_mean_comp_none)

dat_lineplot_2$est_mean_comp_trend_sameFacet_sameSubgroup <- ifelse(dat_lineplot_2$state_var == "Brandenburg" & dat_lineplot_2$trend == "2009_2015" & dat_lineplot_2$subgroup_var == "weiblich", NA, dat_lineplot_2$est_mean_comp_trend_sameFacet_sameSubgroup)

dat_lineplot_2$se_mean_comp_trend_sameFacet_sameSubgroup <- ifelse(dat_lineplot_2$state_var == "Brandenburg" & dat_lineplot_2$trend == "2009_2015" & dat_lineplot_2$subgroup_var == "weiblich", NA, dat_lineplot_2$se_mean_comp_trend_sameFacet_sameSubgroup)

dat_lineplot_2 <- dat_lineplot_2[dat_lineplot_2$state_var != "Niedersachsen", ]

## Dritte Gruppe separat

dat_lineplot_2$state_var <- process_bundesland(dat_lineplot_2$state_var)

## Relevel, so Deutschland comes at the end
dat_lineplot_2$state_var <- forcats::fct_relevel(dat_lineplot_2$state_var, "Deutschland", after = Inf)

## We can set the order of the brace labels by setting the factor levels of the subgroup_var:
dat_lineplot_2$subgroup_var <- factor(dat_lineplot_2$subgroup_var, levels = c("weiblich", "maennlich", "total"), ordered = TRUE)

state_levels <- levels(dat_lineplot_2$state_var)

years_lines_list <- stats::setNames(lapply(state_levels, function(x) list(c(2009, 2015), c(2015, 2022))), state_levels)

years_lines_list$`Baden−Württemberg`[[1]] <- NULL
years_lines_list$`Deutschland`[[2]] <- NULL

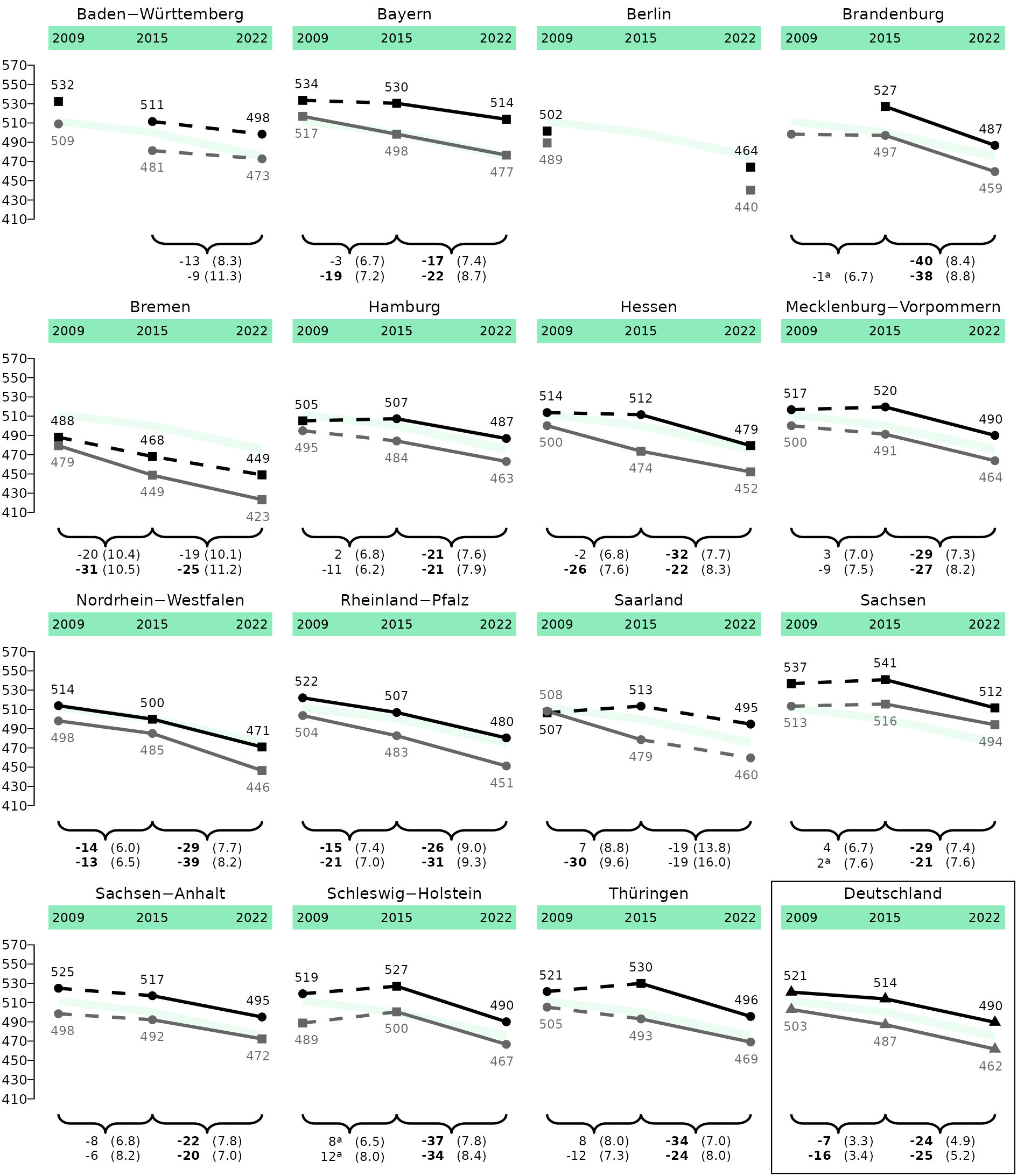

lineplot_na <- plot_lineplot(
  dat_lineplot_2,
  years_lines = years_lines_list,
  years_braces = years_lines_list,
  background_facet = "Deutschland",
  background_subgroup = "total",
  box_facet = "Deutschland",
  plot_settings = plotsettings_lineplot(
    subgroup_colours = c(weiblich = "black", maennlich = cmyk(0, 0, 0, 60)), ## Here we determine the colours of the subgroups
    axis_y_lims = c(410, 560),
    background_facet_remove = FALSE,
    default_list = lineplot_4x4
  )
)

## Because Deuschland is also our background-facet, the years we removed there are also not plotted in the background.
save_plot(lineplot_na, filename = "C:/Users/hafiznij/Downloads/lineplot_na.pdf", width = 160, height = 185)
lineplot_na
## Warning: Removed 2 rows containing missing values or values outside the scale range
## (`geom_line()`).
## Warning: Removed 4 rows containing missing values or values outside the scale range
## (`geom_point()`).
## Warning: Removed 1 row containing missing values or values outside the scale range
## (`geom_text()`).
## Warning: Removed 1 row containing missing values or values outside the scale range
## (`geom_line()`).
## Warning: Removed 2 rows containing missing values or values outside the scale range
## (`geom_point()`).
## Warning: Removed 2 rows containing missing values or values outside the scale range
## (`geom_text()`).

Lineplot with long trend

dat_lineplot_2 <- prep_lineplot(
  trend_gender[[1]],
  subgroup_var = "Kgender"
)

dat_lineplot_2$state_var <- process_bundesland(dat_lineplot_2$state_var)


## We can set the order of the brace labels by setting the factor levels of the subgroup_var:
dat_lineplot_2$subgroup_var <- factor(dat_lineplot_2$subgroup_var, levels = c("weiblich", "maennlich", "total"), ordered = TRUE)

lineplot_2_long <- plot_lineplot(
  dat_lineplot_2,
  years_lines = list(c(2009, 2015), c(2015, 2022)),
  years_braces = list(c(2009, 2022), c(2015, 2022)),
  background_facet = "Deutschland",
  background_subgroup = "total",
  plot_settings = plotsettings_lineplot(
    subgroup_colours = c(weiblich = "black", maennlich = cmyk(0, 0, 0, 60)), ## Here we determine the colours of the subgroups
    axis_y_lims = c(410, 560),
    brace_label_nudge_x = 0.175,
    default_list = lineplot_4x4
  )
)
save_plot(lineplot_2_long, filename = "C:/Users/hafiznij/Downloads/lineplot_2_groups_long.pdf", width = 160, height = 185)
lineplot_2_long
